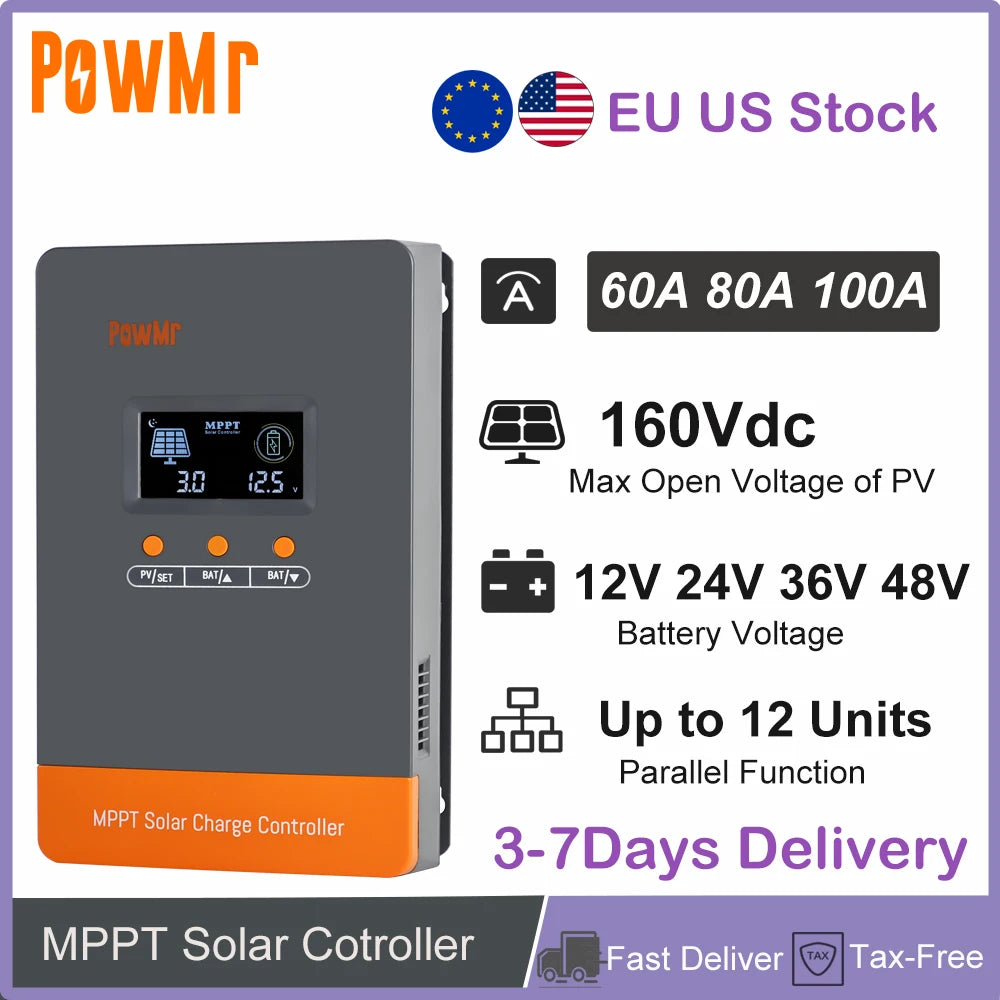

PowMr MPPT Solar Charge Controller 60A 12V 24V 48V LiFePO4
PowMr MPPT Solar Charge Controller 60A 12V 24V 48V LiFePO4
Regular price
$144.99 USD
Regular price
$0.00 USD
Sale price
$144.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
You capture maximum solar output with this PowMr MPPT charge controller, which converts raw panel voltage into optimized current for 12V, 24V, 36V, or 48V battery banks.
- You route up to 60A, 80A, or 100A of steady charging current while safely accepting panel arrays with open-circuit voltages reaching 160Vdc.

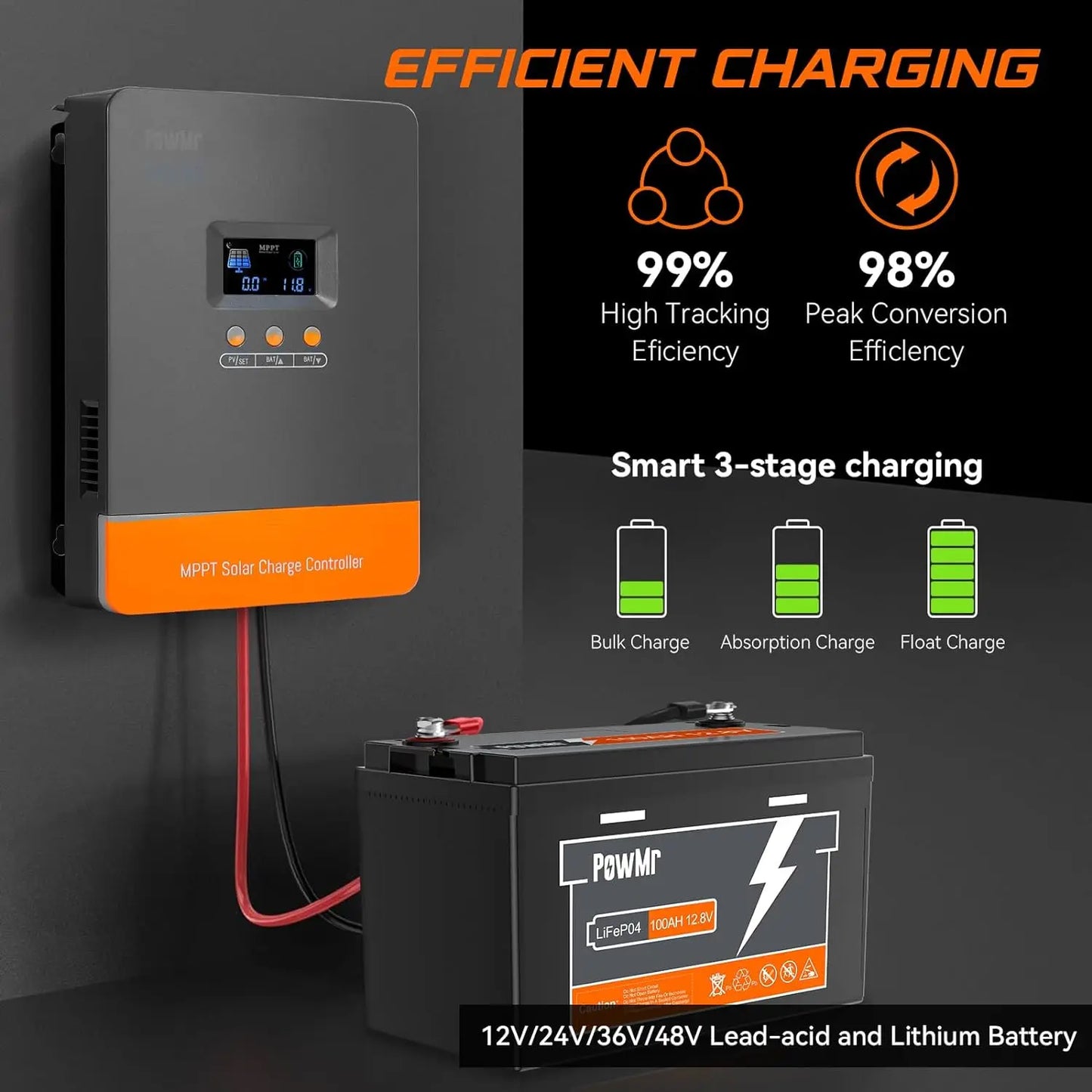

- You prolong your battery lifespan through adaptive three-stage logic that automates boost timing and directly wakes LiFePO4 banks from protected storage states.
- You grow your off-grid system without hardware replacements by wiring up to twelve units together, bypassing normal single-panel amperage caps.
- You guarantee reliable field performance with IP32 housing, -35℃ to +45℃ operational ranges, and dedicated connectors for external temperature compensation probes.
Models |
60A |
80A |
100A |
Solar Input Specification | |||
|
Max. Solar Array Open-Circuit
Voltage
|
160Vdc |
||
|
Maximum Input Power:
For 12V System
For 24V System
For 36V System
For 48V System
|
720W 20-80Vdc;
1440W 37-105Vdc;
2100W 50-160Vdc;
2800W 72-160Vdc.
|
960W
1920W
2880W
3840W
|
1200W
2400W
3600W
4800W
|
Charge Mode | |||
Charging Technology |
MPPT |
||
Charging Algorithm |
3 Stages |
||
Nominal System Voltage |
12V/24V/36V/48V |
||
Battery Voltage Range |
9~60V |
9~60V |
|
Rated Charging Current |
60A |
80A |
100A |
Conversion Efficiency |
≤98% |
||
MPPT Efficiency |
>99% |
||
Self-Consumption |
0.7W-1.2W |
44mA/12V; 26mA/24V; 18mA/36V; 12mA/48V |
|
Environment Specification | |||
Operating Temperature Range |
-35℃~+45℃ |
||
Humidity Range |
≤95%,Non-condensing |
||
Altitude |
<3000m |
||
Protection Level |
IP32 |
||
Parallel Function |
Up to 12 Units in Parallel |
||
