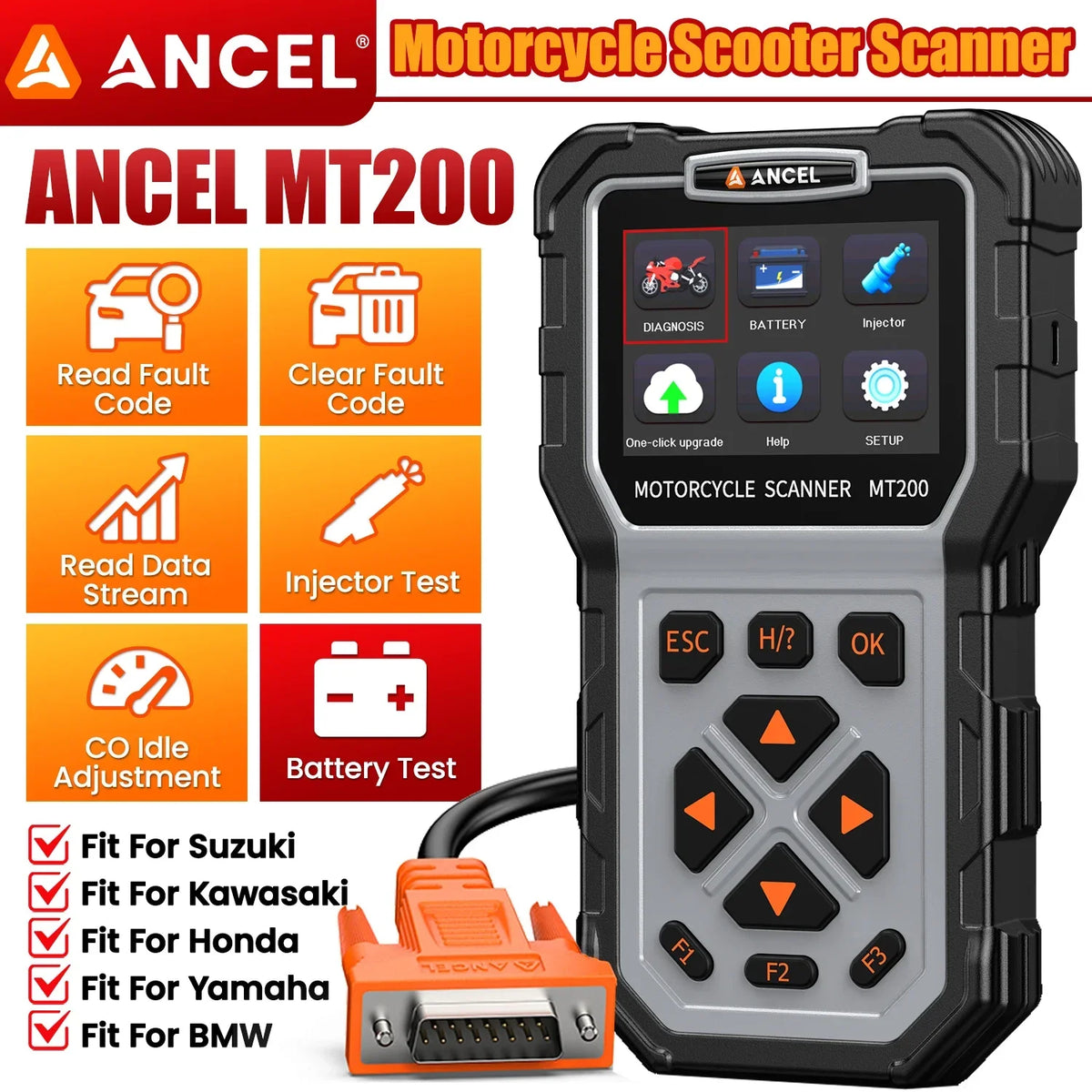

ANCEL MT200 — Professional Motorcycle Diagnostic Scanner

▶ Full System Diagnosis for 34+ Motorcycle Brands
▶ Professional Injector Test — 4 Pulse Modes
▶ Battery Test & Charging System Analysis
▶ Real-Time Live Data + Waveform Display
▶ CO Idle Adjustment + TPS Calibration
▶ Actuator Test & Anti-Theft System Test
▶ 3.5" Color Screen with Waveform Graphics
▶ 14 Languages — Global Version
▶ Lifetime Free WiFi Update
▶ 1 Year Warranty

WHY CHOOSE ANCEL MT200

6 Reasons It's the Pro Mechanic's Choice

🏍 Full System — Every Module on Your Bike

Not just engine codes. MT200 accesses every electronic system on compatible motorcycles: engine, ABS, transmission, instrument cluster, immobilizer, suspension, EFI, and more. Dealer-level depth at entry-level price.

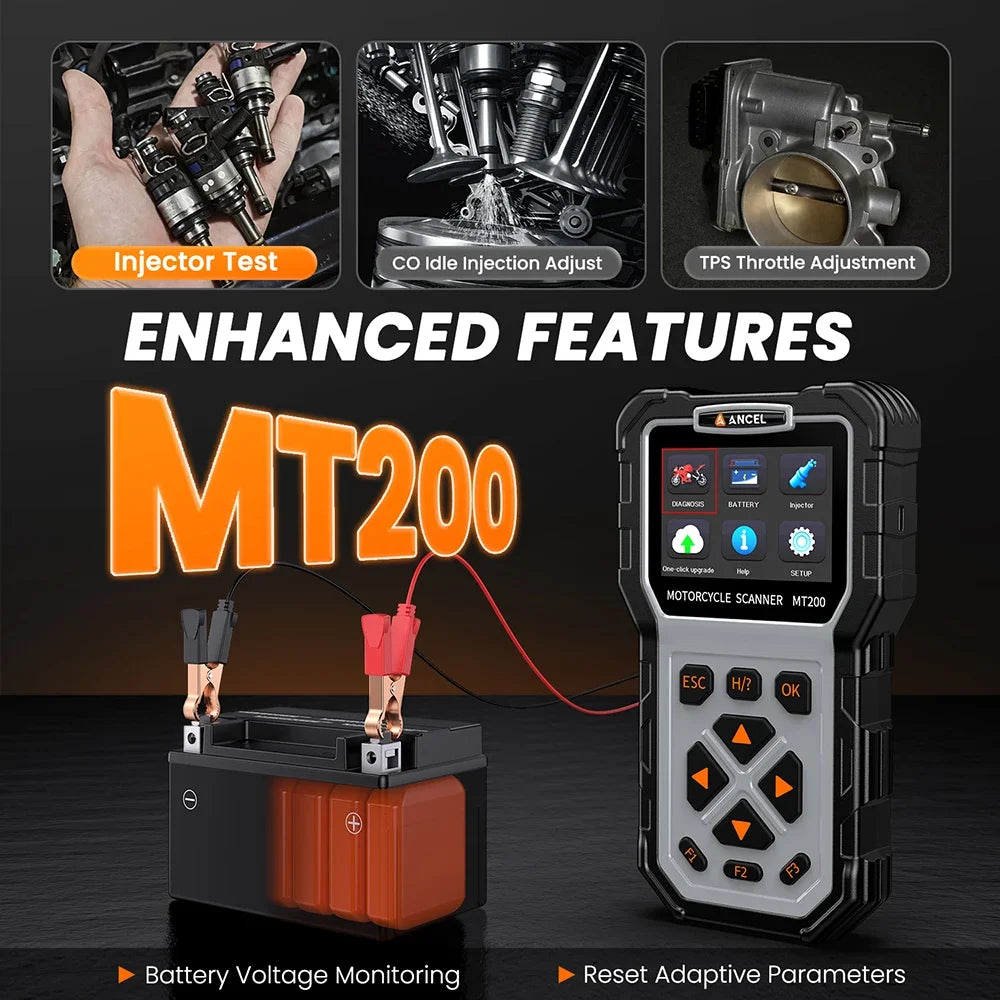

💉 Professional Injector Test

Unique feature in this price range. Test fuel injectors directly with 4 pulse modes — single pulse, 50 pulse, 100 pulse, and continuous pulse. Diagnose clogged injectors, uneven spray, and fuel delivery issues without removing them.

🔋 Built-In Battery Testing

Monitor battery voltage in real time with waveform display. Test charging system health, detect weak batteries, and track voltage under load. A must-have for diagnosing electrical issues on any bike.

📊 Live Data + Dynamic Waveforms

See exactly what's happening in real time. Engine RPM, throttle position, battery voltage, sensor readings — all displayed as both numbers and graphical waveforms. Professional mechanics rely on waveform data for accurate diagnosis.

⚙️ Advanced Service Functions

CO idle adjustment, TPS throttle position sensor calibration, actuator testing, anti-theft system test, adaptive parameter reset, and idle speed adjustment. Workshop-level functions that save time and money at the shop.

🆓 Lifetime Free WiFi Updates

No subscriptions, no annual fees. One-click WiFi updates directly on the device — no computer needed. New motorcycle brands, improved diagnostics, and new features added regularly, all free forever.

FULL SYSTEM DIAGNOSIS

Scan Every Electronic System on Your Motorcycle

MT200 accesses all available control modules on compatible motorcycles.

⚙️ Engine & Fuel System
Engine Control Unit (ECU), Fuel Injection, EFI System, Throttle Body, Ignition System, Oxygen Sensors
🛡️ Safety & Brake
ABS Anti-Lock Brakes, Brake Control Module, Traction Control, Stability Systems
🔒 Security & Immobilizer
Anti-Theft System, Immobilizer, Alarm System, Key Recognition
📊 Instrument & Body
Instrument Cluster / Dashboard, Speedometer, Tachometer, Indicator Lights, Body Control

✅ Read fault codes, clear fault codes, view live data, freeze frame data, ECU version info, DTC lookup, actuator tests.

PROFESSIONAL INJECTOR TEST

4 Test Modes for Accurate Diagnosis

Identify clogged injectors, uneven fuel spray, and fuel delivery problems without removing them from the bike.

🔹 Single Pulse Test — One injection pulse for baseline check
🔹 50 Pulse Test — Short burst for spray pattern evaluation
🔹 100 Pulse Test — Standard cycle for flow rate comparison
🔹 Continuous Pulse Test — Sustained operation for full diagnosis

Detects:

● Fuel injector blockage and clogging
● Uneven fuel spray pattern
● Fuel delivery volume issues
● Engine misfire causes
● Stuck or leaking injectors

BATTERY TEST FUNCTION

Monitor Electrical System Health

Quickly analyze motorcycle battery and charging system condition with real-time waveform display.

🔹 Battery Voltage Detection — Accurate voltage reading
🔹 Real-Time Monitoring — Live voltage tracking while engine runs
🔹 Charging System Analysis — Verify stator and rectifier output
🔹 Voltage Waveform Display — See ripple and irregularities graphically

Perfect for diagnosing:

● Weak or failing batteries
● Charging system problems
● Stator / rectifier issues
● Parasitic battery drain
● Electrical gremlins

LIVE DATA + DYNAMIC WAVEFORMS

See What's Happening in Real Time

MT200 doesn't just show fault codes — it displays live sensor data as both numerical values and graphical waveforms.

Data points you can monitor:

● Engine RPM (real-time tachometer)
● Throttle position sensor angle
● Battery voltage with waveform
● Oxygen sensor readings
● Fuel injector pulse width
● Intake air temperature
● Coolant temperature
● ECU timing and advance data
● All available sensor outputs

Why pros love waveform view:

● Spot intermittent faults that codes miss
● Verify sensor signal quality
● Diagnose electrical noise issues
● Compare sensor outputs side by side

MOTORCYCLE BRAND COVERAGE

34+ Brands — Global Compatibility

Japanese:

Honda, Yamaha, Kawasaki, Suzuki

European:

BMW, KTM, Aprilia, Benelli, Triumph, Vespa, Piaggio, Peugeot, Moto Morini, Brixton

American & North American:

Indian, Arctic Cat, Bombardier

Other:

FIT, Rojo

And more brands added regularly via free updates.

Supports most models from major manufacturers. Coverage varies by brand, year, and system.

SMART FEATURES

Designed for Professional Technicians
● Auto Scan — One-tap full system scan, shows all faults instantly
● DTC Lookup Library — Built-in fault code definitions on screen
● Freeze Frame Data — Captures sensor data at the moment a fault occurs
● Oxygen Sensor Monitor — Real-time O2 sensor tracking
● Vehicle Information — Read ECU part numbers and software versions
● Maintenance Assistant — Step-by-step service guidance
● Troubleshooting Guide — Helpful tips for common fault codes

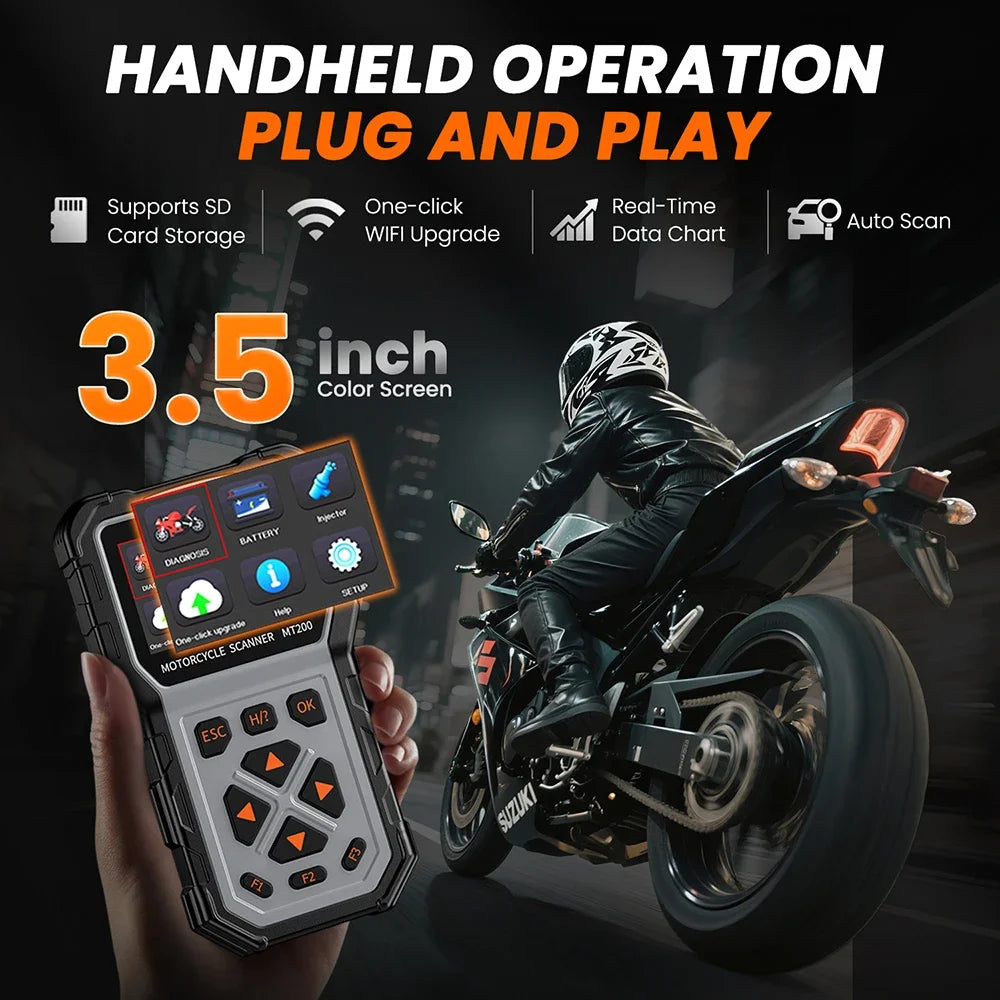

● 3.5" Color Display — Clear, bright screen with crisp graphics
● Ergonomic Handheld Design — Comfortable for extended use in the shop
● F1 / F2 / F3 Shortcut Keys — Quick access to frequently used functions

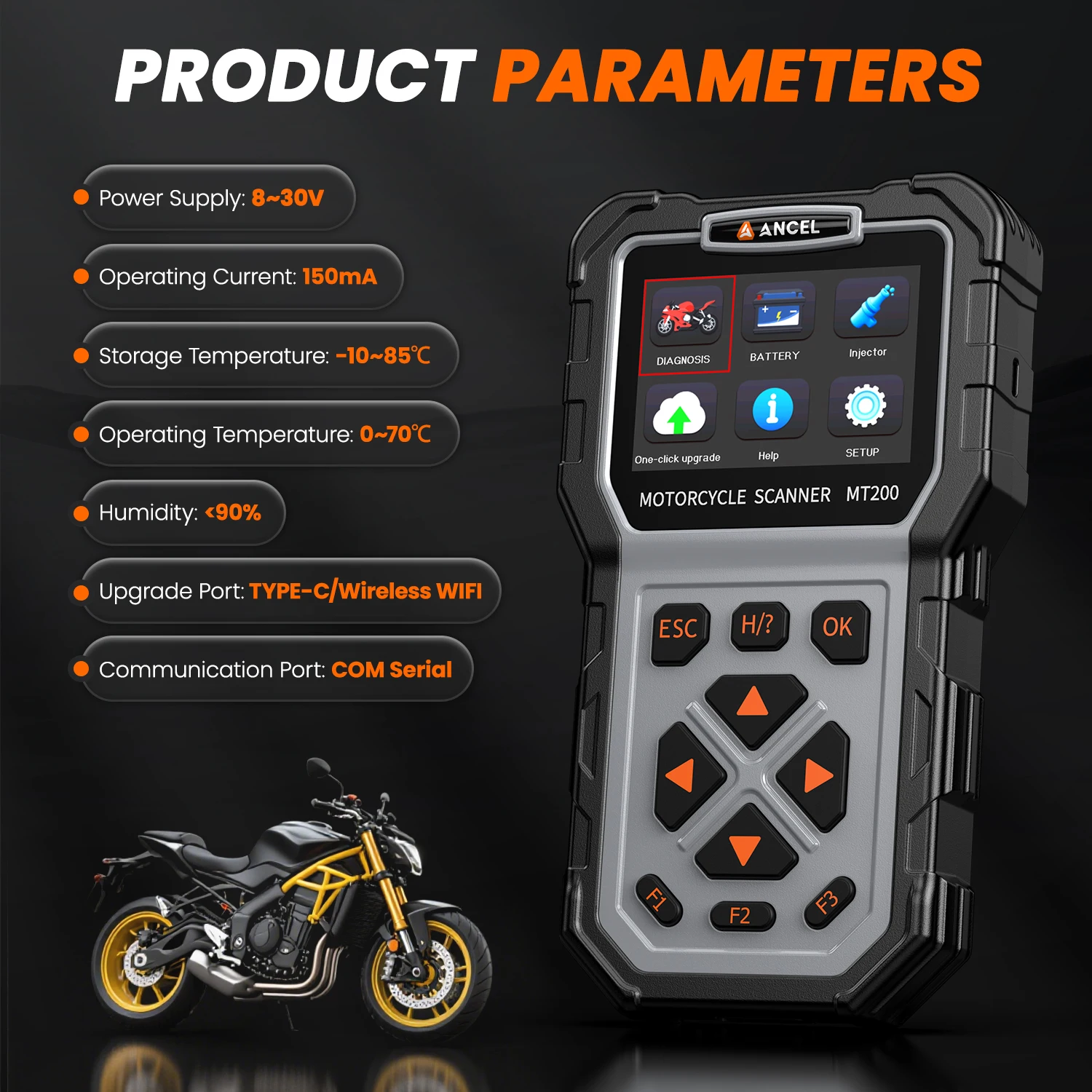

TECHNICAL SPECIFICATIONS

Display: 3.5" Color LCD Screen
Power: 8V ~ 30V DC
Working Current: 150mA
Operating Temperature: 0°C ~ 70°C
Storage Temperature: -10°C ~ 85°C
Humidity: <90%
Upgrade Port: Type-C USB + Wireless WiFi
Communication Port: COM Serial Port
Languages: 14 Languages (EN/ES/FR/DE/IT/RU/PT/PL/NL/JA/TR/ID/TH/ZH)
Brand Coverage: 34+ Motorcycle Brands
Update: Lifetime Free WiFi Update
Warranty: 1 Year

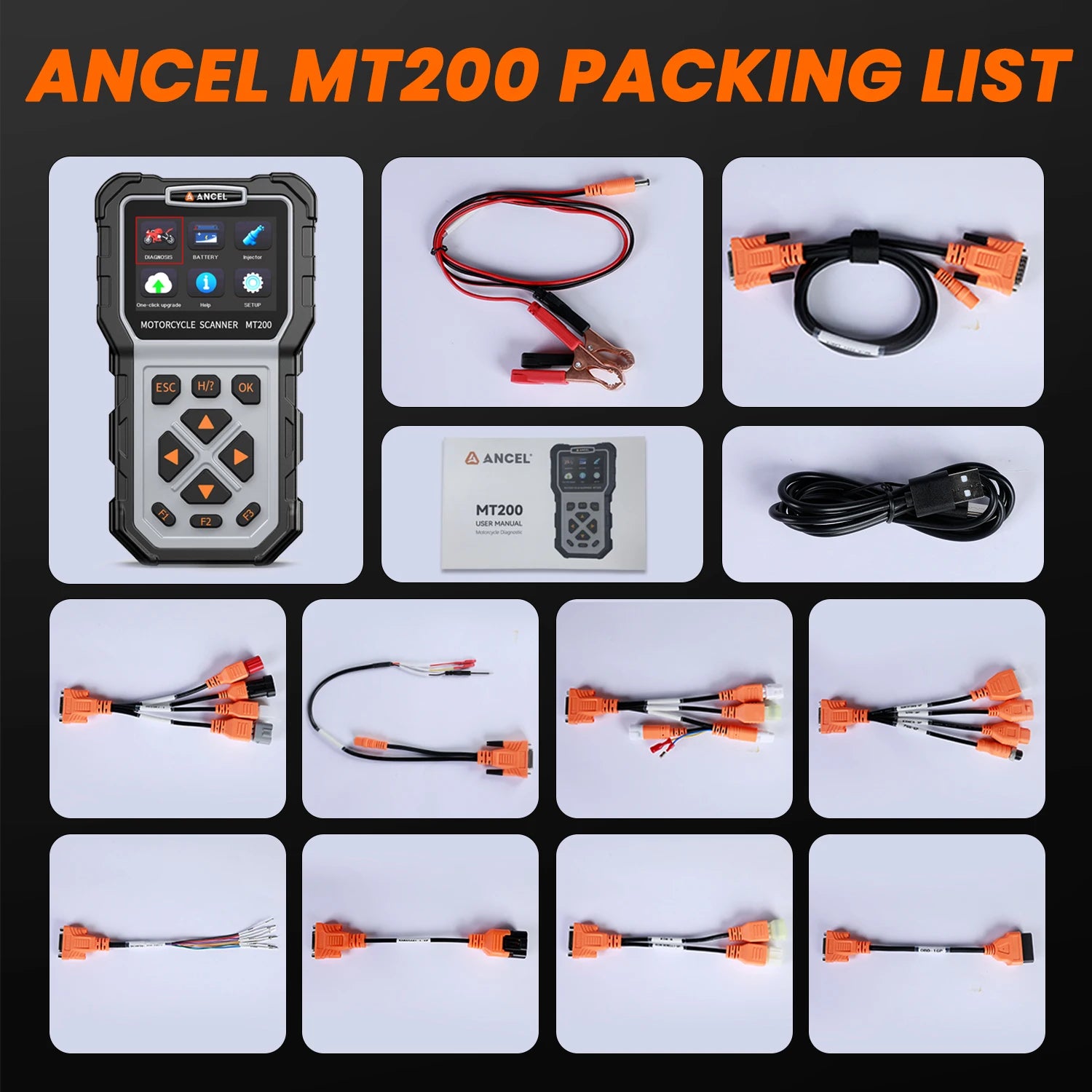

PACKAGE INCLUDES

● 1× MT200 Motorcycle Diagnostic Scanner
● 1× Diagnostic Cable
● 1× Type-C USB Cable
● 1× User Manual
● 1× Storage Box

Q&A — FREQUENTLY ASKED QUESTIONS

Q: Does MT200 do full system diagnosis on motorcycles?
A: Yes, MT200 is a full system motorcycle scanner that accesses all available electronic modules including engine, ABS, transmission, immobilizer, instrument cluster, and more on compatible brands.

Q: Can it test fuel injectors?
A: Yes, MT200 has a built-in professional injector test function with 4 modes: single pulse, 50 pulse, 100 pulse, and continuous pulse. Test injector spray pattern and flow without removal.

Q: Does it have battery testing?
A: Yes, built-in battery voltage monitoring with waveform display. Test battery health and charging system performance including stator and rectifier output.

Q: What maintenance functions does it have?
A: CO idle adjustment, TPS throttle calibration, actuator testing, anti-theft system test, adaptive reset, idle speed adjustment, and injector coding. Availability varies by brand and model.

Q: How many motorcycle brands does it support?
A: 34+ brands including Honda, Yamaha, Kawasaki, Suzuki, BMW, KTM, Aprilia, Triumph, Benelli, Vespa, Piaggio, Indian, SYM, KYMCO, CFMOTO, and more.

Q: Are updates really free for life?
A: Yes, truly lifetime free software updates via WiFi. No subscription fees, no annual charges. One-click update directly on the device — no PC required.

Q: How many languages are available?
A: 14 languages: English, Spanish, French, German, Italian, Russian, Portuguese, Polish, Dutch, Japanese, Turkish, Indonesian, Thai, and Chinese.

Q: Does it show live data waveforms?
A: Yes, MT200 displays real-time data as both numerical values and graphical waveforms — a feature usually found on much more expensive professional tools.

Q: What warranty does it have?
A: 1-year hardware warranty with lifetime technical support and free software updates.

SERVICE PROMISE

✅ Full System Diagnosis — All modules, all brands
✅ Professional Injector Test — 4 pulse test modes
✅ Battery & Charging Test — Voltage waveform analysis
✅ Live Data + Waveforms — Pro-level diagnostic data
✅ CO Idle & TPS Adjustment — Workshop service functions
✅ Actuator Testing — Test components directly
✅ 34+ Motorcycle Brands — Global coverage
✅ 14 Languages — Multi-language global version
✅ Lifetime Free WiFi Update — No subscriptions ever
✅ 3.5" Color Screen — Clear waveform display
✅ 1 Year Warranty — Lifetime technical support
